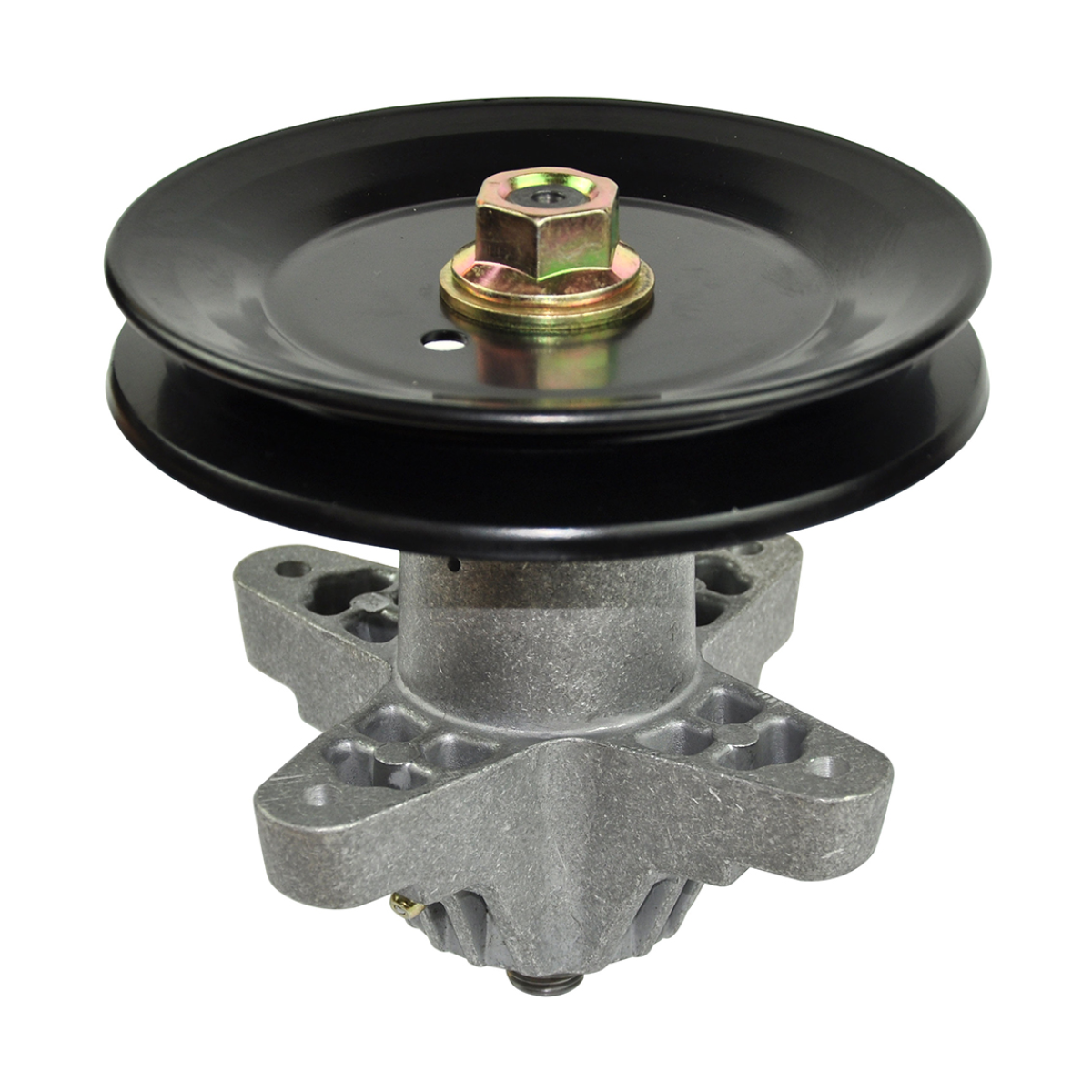

Toro 41" & 42" Cut Spindle Assembly

MTD / YARDMAN / CUB CADET / TROY BILT / TORO WHEELHORSE SPINDLE ASSEMBLY SUITS 42"

Specifications

Description: Non-Genuine Cub Cadet, Massey Ferguson, MTD, Toro, and Troy Bilt 41" & 42" Cut Spindle Assembly

Replaces OEM:

Cub Cadet 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, and 918-0659A

Massey Ferguson 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, and 918-0659A

MTD 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A, 918-0624B, 918-0659, and 918-0659A

Toro 112-0460

Troy Bilt 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A 918-0624B, 918-0659, and 918-0659A

Centre Hole Type: Fits 6-Point Star

Deck (cm) 104.2 cm & 106.7 cm

Deck (inches) 41" & 42"

Deck (mm) 1042 mm & 1067 mm

Pulley Diameter : (inches) 6 1/4"

Pulley Diameter : (mm) 158.75 mm

Pulley Height : (inches) .938"

Pulley Height : (mm) 23.825 mm

Thread Size: 5/8" - 18 UNF

Fits: 42" (1067 mm) cut Cub Cadet 1000 Series LT1042* (19 hp model 13AX11CG630 years 2005 to 2006) ride-on lawn mower models and RZT-42 [RZT42, RZT 42] (models 17AE2ACG330 year 2010 and 17 hp model 17AE2ACG630 years 2007 to 2008) zero turn radius (ZTR) ride-on lawn mower models. 2 required per unit

Fits: 41" (1042 mm) cut Massey Ferguson MF41-20RD (model 13AE51CN695 year 2007) ride-on lawn mower models. 2 required per unit

Fits: Massey Ferguson 41" cut MF41-20RD 13AE51CN695 (2007) model ride on lawnmower models

Fits: 42" (1067 mm) cut MTD Black Beauty (18.5 hp model 13A0771G670 year 2006), Yard Machines (models 13A7771G670 years 2005 to 2006 and 13AD791G670 year 2005), Yard-Man (models 13AP604G671 years 2006 to 2007, 13AV604G371 year 2009, 13AV604G671 year 2007 and 20 hp 13AX604G671 year 2005) ride-on lawn mower models and Yard-Man Z Series RZT-42 [RZT42, RZT 42] (models 17AC2ACG055 year 2010 and 17AE2ACG678 year  2010) zero turn radius (ZTR) ride-on lawn mower models. 2 required per unit

Fits: Selected Toro models. 2 required per unit

Fits: 42" (1067 mm) cut Troy Bilt (17.5 hp model 13AN779G766 year 2005) ride-on lawn mower models. 2 required per unit

Features: For 42” cut decks using star centre hole blades and fitted with a 6.250” spindle pulley.

Standard Pack Quantity: 1

Footnote: When installing new spindle assemblies, pulley nuts must be checked and correctly tightened. All spindle assemblies are sold as singles, order the quantity required to make up a set.

Please Note: *Cub Cadet LT1042 - more than one type of spindle assembly was fitted to these models during their production run, please check your machine carefully prior to ordering. For a replacement spindle pulley use our part number PUL7476.

Brand: Cub Cadet Non-Genuine, Massey Ferguson Non-Genuine, MTD Non-Genuine, Toro Non-Genuine, and Troy Bilt Non-Genuine

Product Line: Assembly - Spindle, Quill Assembly and Spindle Assembly
