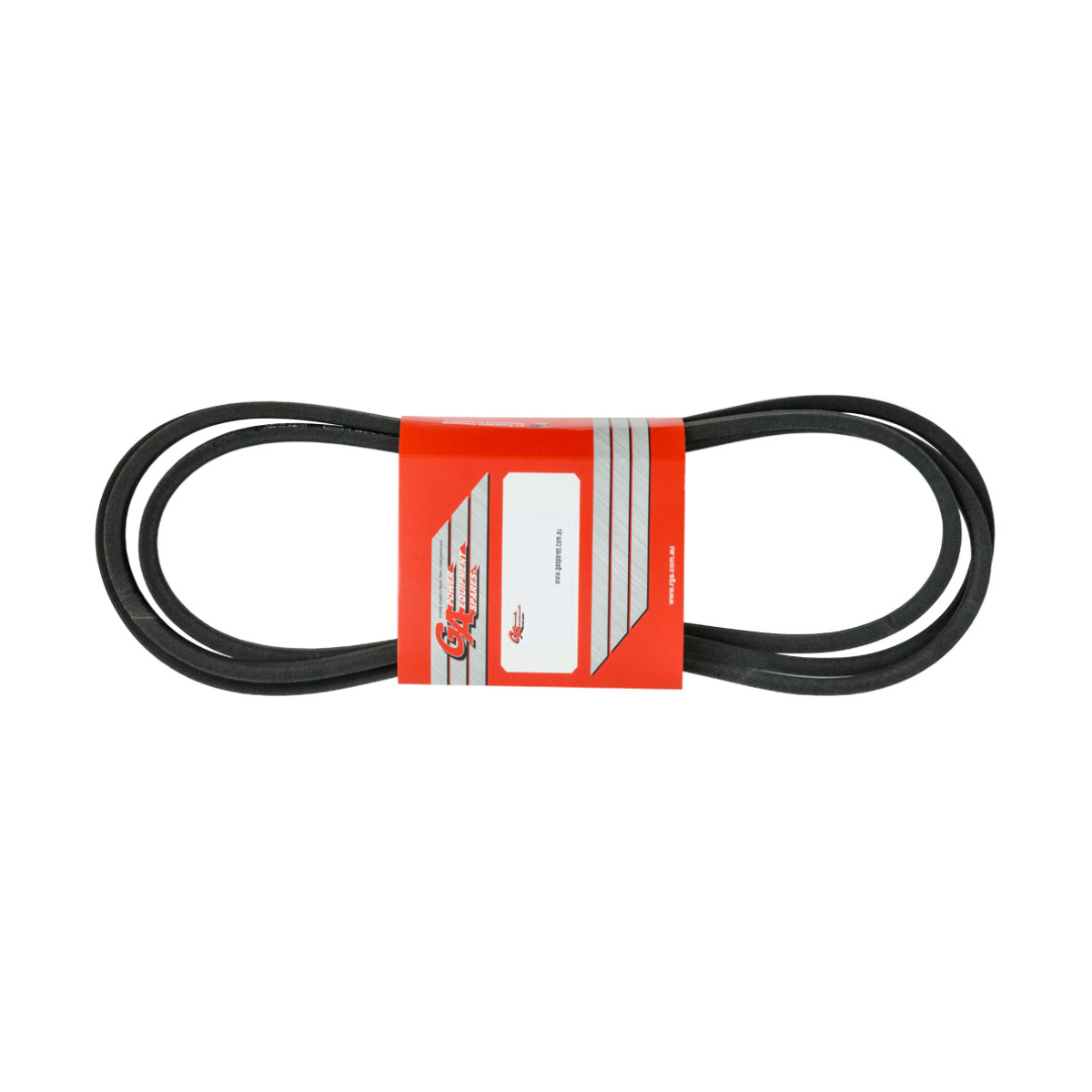

HustlerTransmission Drive Belt (BEL8601)

BIGDOG / HUSTLER TRANSMISSION RAW EDGE BELT 13 mm WIDE X 1289 O.C

Specifications

Description: Non-Genuine BigDog, HUSTLER Transmission Drive Belt

Replaces OEM:

BigDog: 603907 and 607400

HUSTLER 603907 and 607400

Deck (inches) Selected 36", 42", 48", 52" & 54" cut

Deck (mm) Selected 915 mm, 1067 mm, 1220 mm, 1320 mm & 1372 mm cut

Deck (cm) Selected 91.5 cm, 106.7 cm, 122 cm, 132 cm & 137.2 cm cut

Length Inside Circumference: 48.74"

Length Inside Circumference: 1238.2 mm

Length Outside Circumference: 50.74"

Length Outside Circumference: 1289 mm

Width: (inches) 0.5118"

Width: (mm) 13 mm

Fits: 42" (1067 mm) cut BigDog Alpha (models 932897EX, 934489EX and 939140EX) and Alpha MP (model 936393EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 48" (1220 mm) cut BigDog Alpha MP (models 932947EX, 936526EX and 937581EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 52" (1320 mm) cut BigDog Alpha (models 932913EX and 939124EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 54" (1372 mm) cut BigDog Alpha MP (models 932939EX, 936518EX and 937573EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 36" (915 mm) cut HUSTLER Raptor (models 935262EX and 938365EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 42" (1067 mm) cut HUSTLER Raptor (models 933465EX, 934679EX, 935270EX, 936559EX, 938332EX, 938407EX and 939108EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 48" (1220 mm) cut HUSTLER Raptor (models 932566EX, 936542EX and 938399EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 52" (1320 mm) cut HUSTLER Raptor (models 931899EX, 938282EX and 939116EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Fits: 54" (1372 mm) cut HUSTLER Raptor (models 932558EX, 936534EX and 938381EX) zero turn radius (ZTR) ride-on models.

Belt Position & Size: Transmission Drive Belt (13 mm Wide x 1238.2 mm I.C / 1289 mm O.C).

Qty required per unit: 1

Standard pack quantity: 1

Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords for heavy duty applications and severe duty cycles. These belts have a drier cover fabric that is designed to increase flexibility and withstand severe clutching action, bending or twisting, heavy loads and backside idler applications. Oil and heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.

Please Note: I.C = Inside circumference / O.C = Outside circumference

Brand: BigDog Non-Genuine and Hustler Non-Genuine

Product Line: Belt, Drive Belt, Motion Drive Belt, Premium Quality Belt, Raw Edge Belt, Transmission Belt, Transmission Drive Belt, and V-Belt
